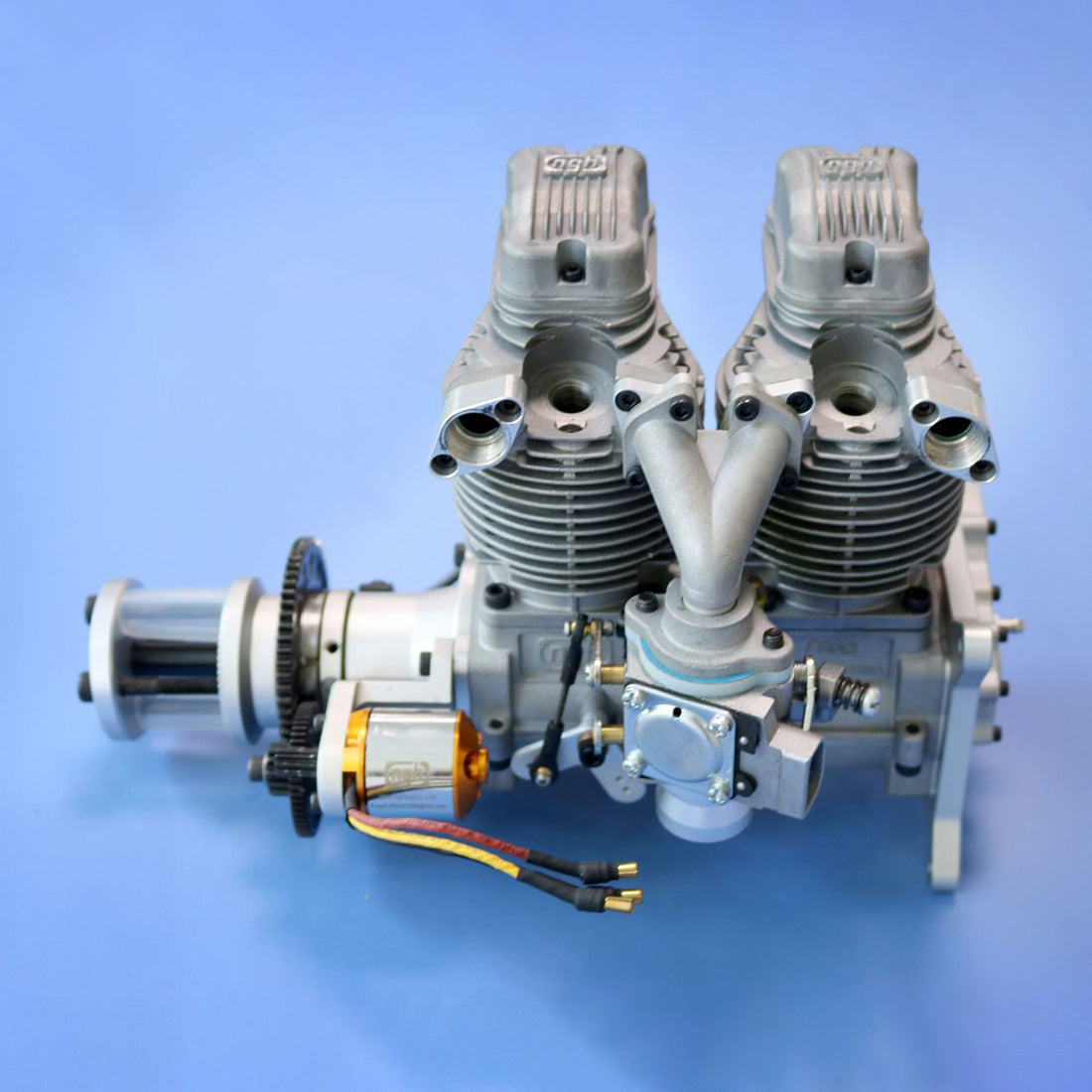

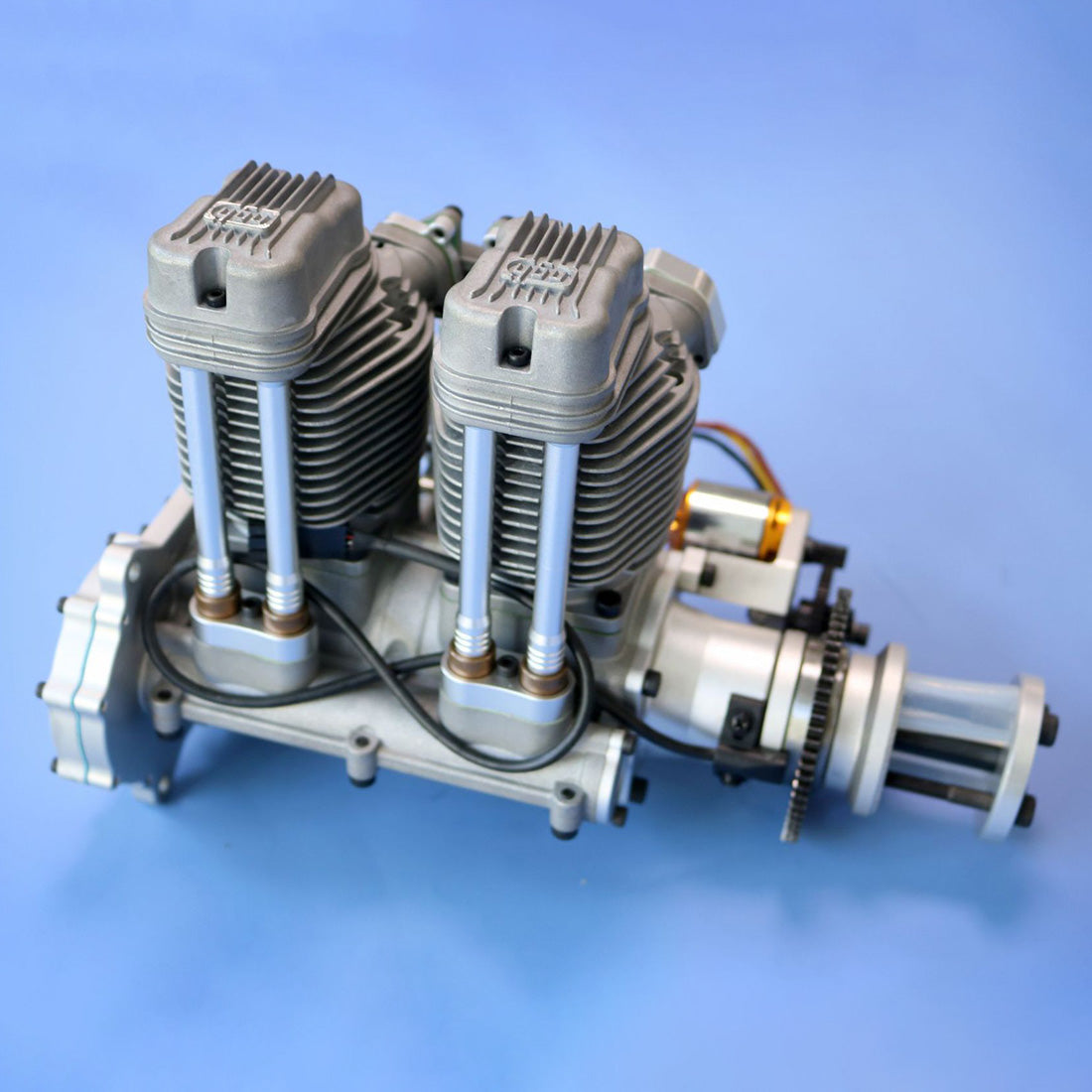

NGH GF60i2-E 60cc Inline Twin-Cylinder Four-Stroke Air-Cooled Gasoline Engine Model with Electric Starter for Fixed-Wing RC Airplanes

Features:

.Equipped with a rear-mounted carburetor, the GF60i2-E ensures easy adjustments and reliable operation.
.The precision-forged connecting rods with needle bearings, and unique separated lubrication circulation system provide excellent lubrication and durability.
.The cylinder body, made of wear-resistant ductile iron, maintains an inner hole roundness tolerance within 0.01mm, significantly higher than that of aluminum alloy chromium-plated cylinders.

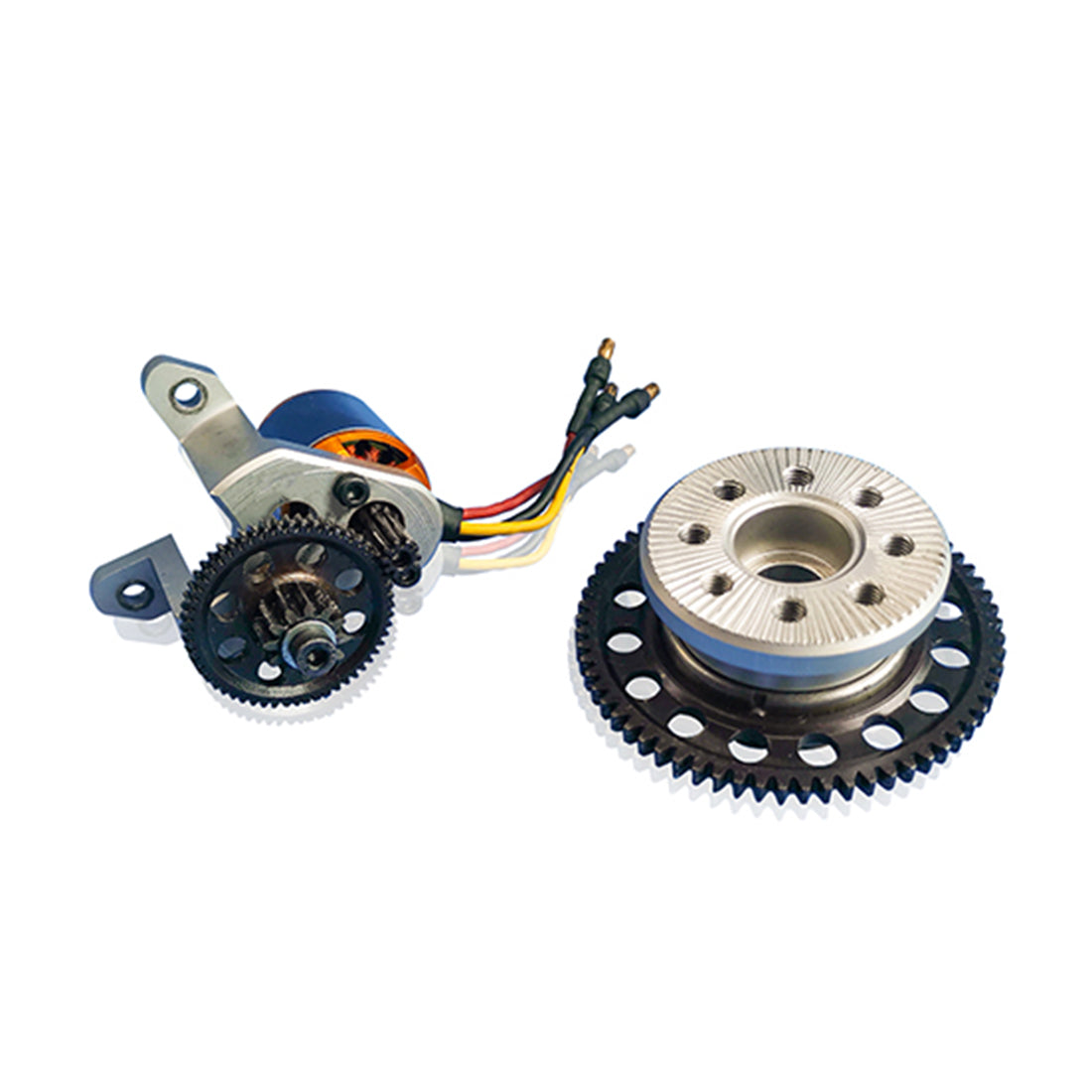

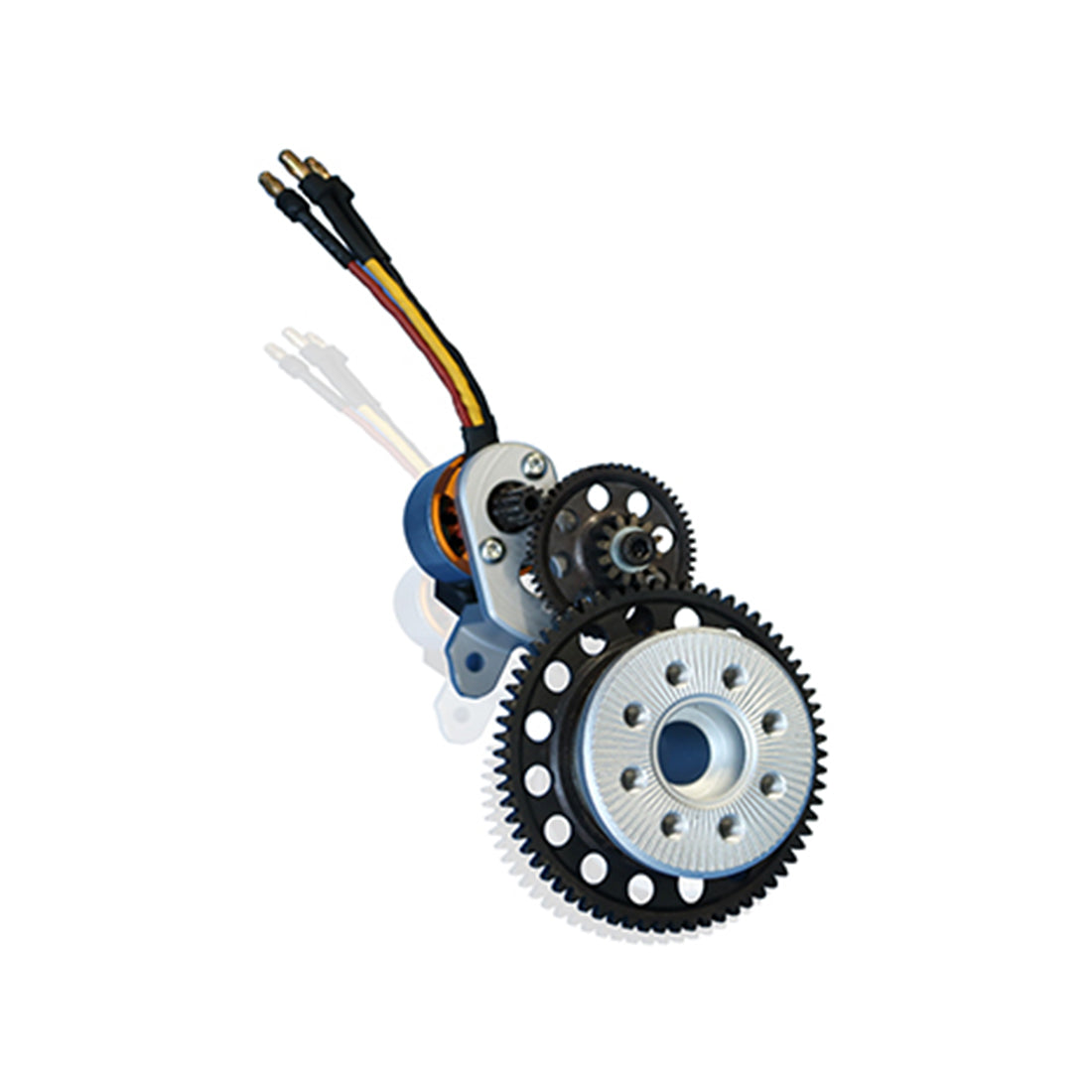

.The GF60i2-E features an automatic induction ignition system and CM6 spark plugs for reliable and efficient ignition. Additionally, the engine comes with an electric starter, making it easy to get your RC plane up and running quickly.

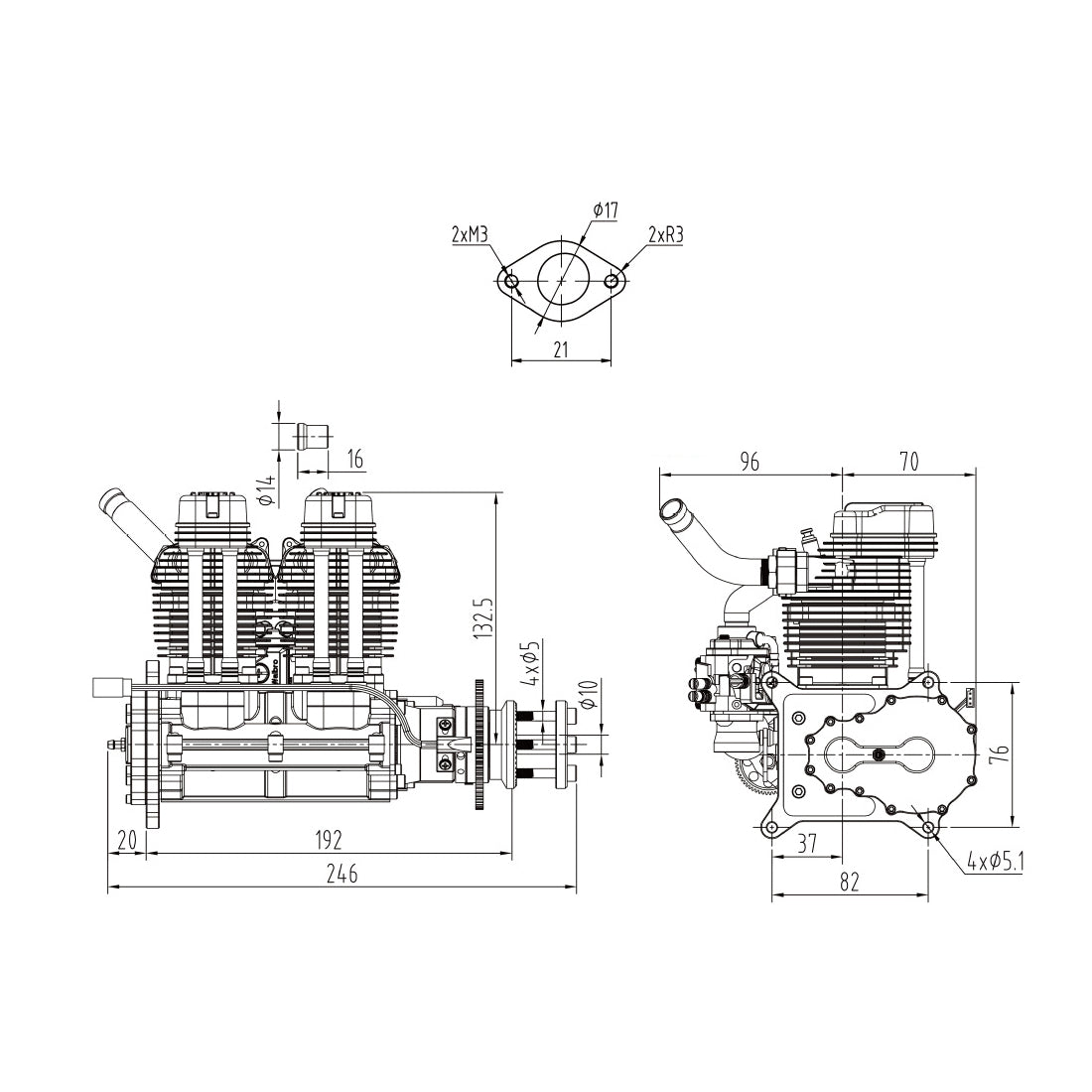

.Background: NGH, renowned for producing gasoline engines, presents the GF60i2-E 60cc inline twin-cylinder four-stroke air-cooled engine. This professional-grade engine, designed by NGH’s expert engineers, is perfect for RC airplane and fixed-wing drone enthusiasts who demand superior performance, low fuel consumption, and high torque. The GF60i2-E matches the installation dimensions of 300-350 class methanol inline four-stroke engines and delivers comparable power. It is ideal for RC planes and fixed-wing drones with a takeoff weight of 12-16kg, making it the best power configuration for 300-350 class RC scale planes and drones.

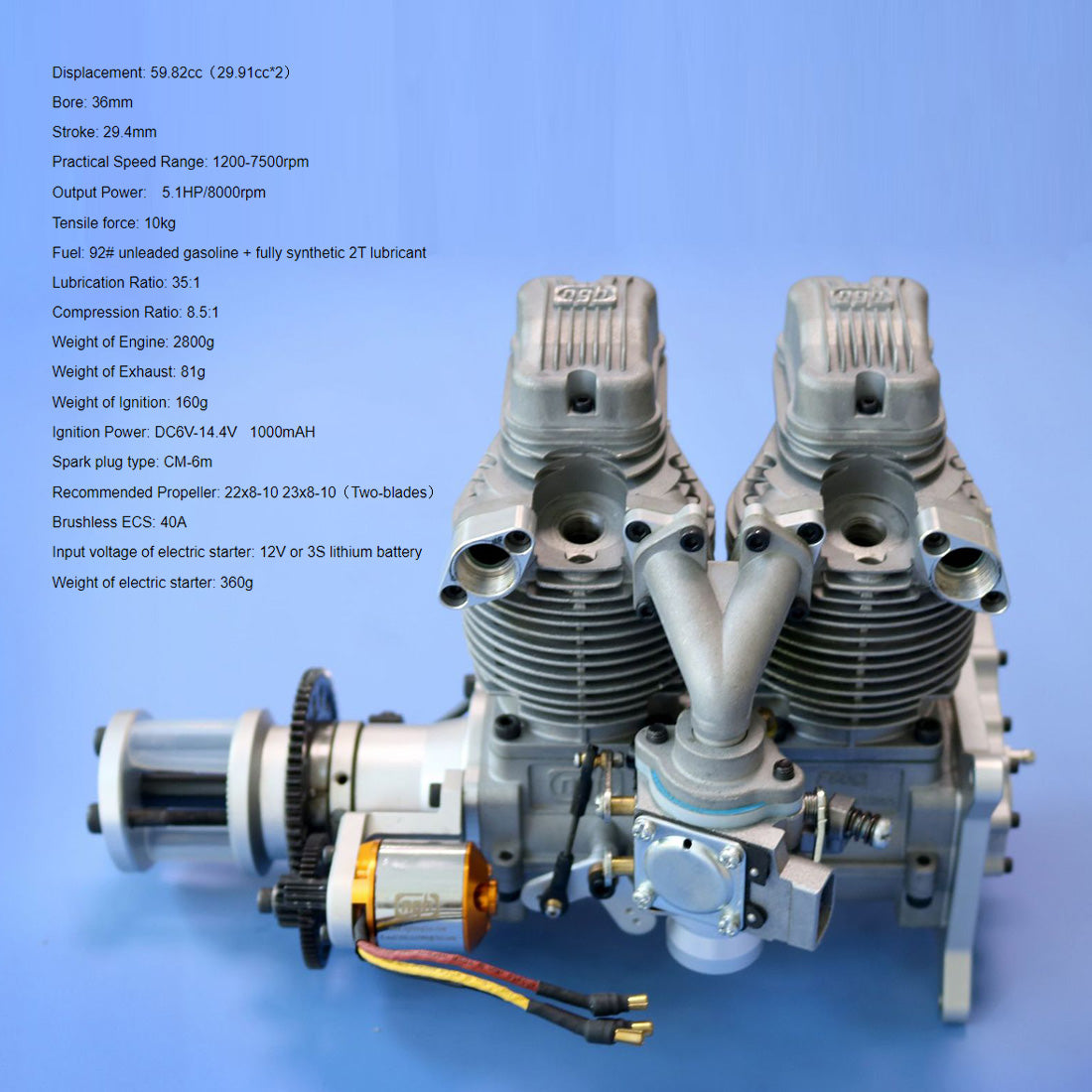

Specification:

.Material: Metal
.Model: GT60i2-E
.Displacement: 59.82cc(29.91cc*2)
.Bore: 36mm
.Stroke:29.4mm
.Practical Speed Range: 1200-7500rpm
.Output Power: 5.1HP/8000rpm
.Tensile Force: 10kg
.Fuel: 92 # Unleaded Gasoline + Fully Synthetic 2T Lubricant
.Lubrication Ratio: Gasoline: Lubricating Oil =35:1
.Compression Ratio: 8.5:1
.Engine Weight: 2800g
.Exhaust Pipe Weight: 81g
.Igniter Weight: 160g
.Igniter Power Supply: DC 6V-14.4V 1000mAh
.Spark Plug Type: CM-6M
.Recommended Propeller: 22x8-10 23x8-10(Two-blades)
.Brushless ECS: 40A

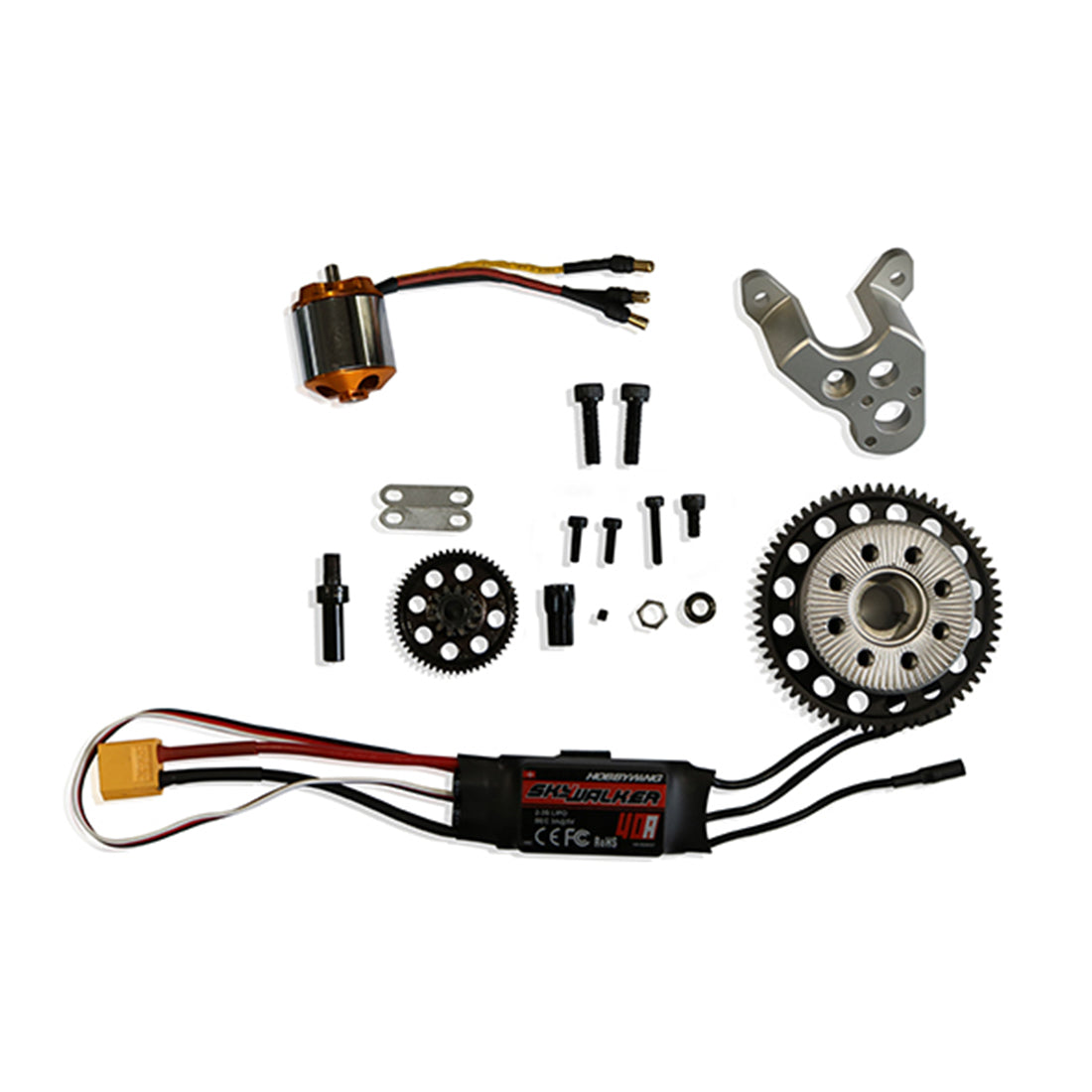

.Input Voltage of Electric Starter: 12V or 3S Lithium Battery
.Weight of Electric Starter: 360g
.Product Weight: 2800g
.Package Dimensions: 25 x 25 x 25cm
.Package Weight: 4090g
.Packing: Box
.Ages: 16+

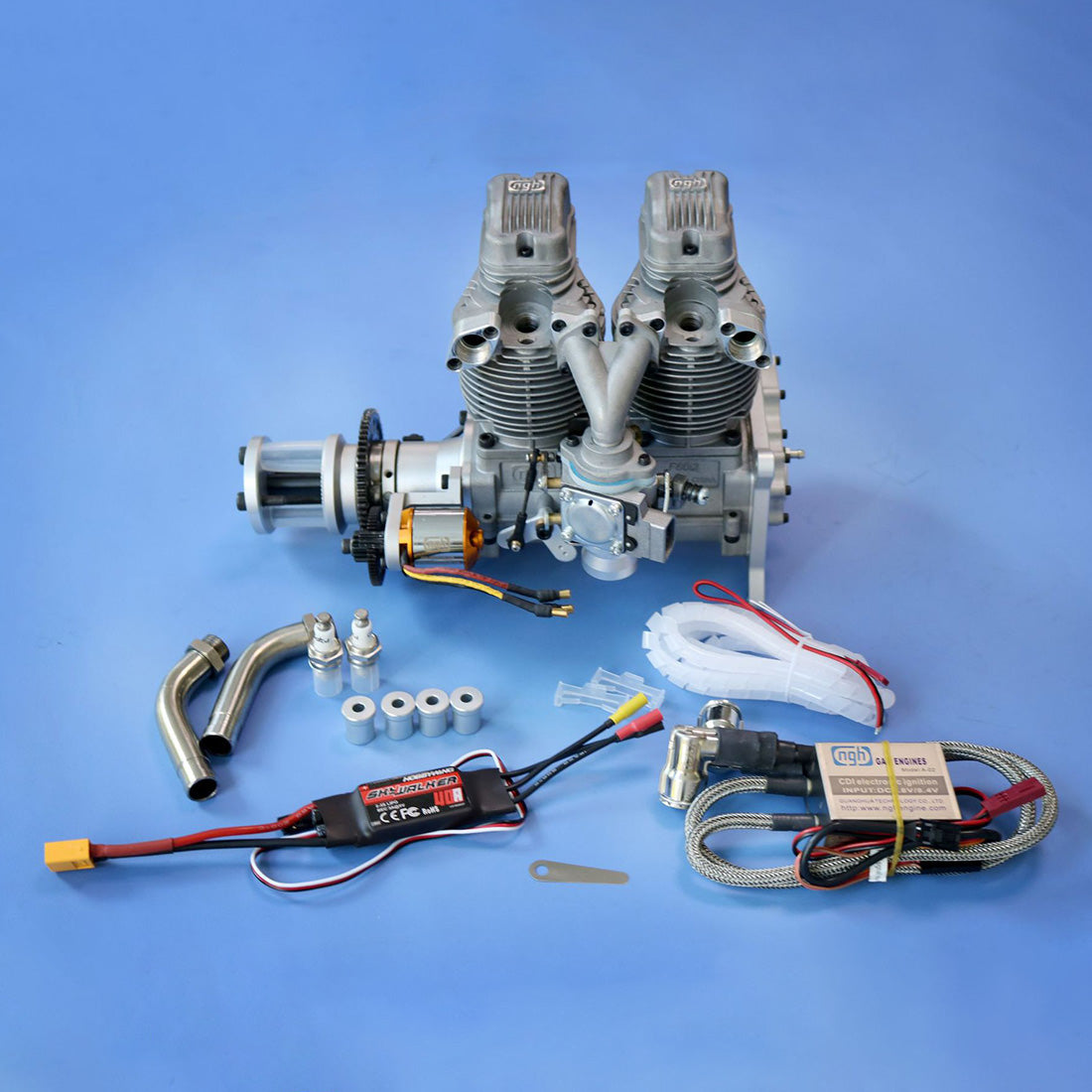

Packaging List:

.Engine *1
.Exhaust Pipe *1
.Spark Plug *1
.CDI Ignition *1
.Mounting Bracket *1
.User Manual and Warranty Card *1
